Current Position:Home > Product > GZGS4 TYPE PUMP HEAT CIRCULATION STAINLESS STEEL COLORIMETRIC DRUM


GZGS4

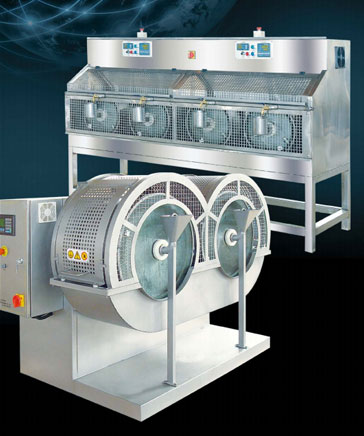

GZGS4 TYPE PUMP HEAT CIRCULATION STAINLESS STEEL COLORIMETRIC DRUM
MAIN FUNCTION AND CHARACTERISTICS

GZGS4 drum consists of several drums which have the same specification. This drum adopts isolating pump heat circulation technology and is effective in transmitting heat into drum by heating the media in the inter-bed which prevents the leather against contamination by separating the water from getting in touch with the leather liquid and ensures thorough discharge of water without residue.It works well in heating and temperature-keeping no matter with or without water in drum,even the drum stops.

We adopt intelligent controller or PLC touch screen together with frequency conversion function to make it possible for automatic rotation in positive and reverse direction,intermittent shutdown,single-direction rotation,forward/backward inching operation and so on. The chain & chain wheel we adopt,being smooth with low vibration and low noise in driving,can stand long-term operation with low frequency of maintenance.

It is adjustable to control the temperature at the range from the normal temperature up to 80℃ with the precision at ±1℃.This series of drums can be divided into 2-tandem,4-tandem and 6-tandem drum.One set of control system is disposed for each two drums or even every one drum, which could meet the demand of colorimetric test.

The industrial standard of leather machiney-------stainless steel temperature regulation test drum is set by our company,the standard number is QB/T4472-2013.It was carried out by The People’s Republic of China ministry of industry and information technology on December 1,2013.


TECHNICIAL PARAMETERS
Model & Size GZGS4-
35×15
GZGS4-
40×15
GZGS4-
40×20
GZGS4-
60×30
GZGS4-
80×30
GZGS4-
80×40
Diameter of drum mm 350 400 400 600 800 800
Width of drum mm 150 150 200 300 300 400
Loading capacity kg 2 2.3 3 7 9 12
Drum speed rpm 0-35 0-35 0-35 0-30 0-25 0-25
Motor power kw 0.37 0.37 0.37 0.75 1.5 1.5
Heating power kw 2.4/Group 2.4/ Group 2.4/ Group 4.5/ Group 4.5/ Group 4.5/Group
Temperature range
Normal
temperature
-80

Normal
temperature
-80

Normal
temperature
-80

Normal
temperature
-80

Normal
temperature
-80

Normal
temperature
-80
Outline dimension(Length×Width×Height) mm 2100×800
×1200
four group
2200×800
×1200
four group
2200×800
×1200
four group
1500×1000
×1200
two group
1900×1000
×1300
two group
1900×1000
×1300
two group
Total weight t 0.26 0.28 0.35 0.6 0.75 0.78
Previous:GZGS3 TYPE PUMP HEAT CIRCULATION STAINLESS STEEL TEMPERATURE REGULATION TEST DRUM
Next Page:GZGR4 PPH CIRCULATION DRUM
